Optimize Semi-Automatic Drilling

EVO range - Electric Drilling Units

For quality, precision, and repeatability.

Our range is divided in two models :

  • Light EVO, designed for repetitive drilling operations involving smaller holes in single-material applications, emphasizing ergonomics and efficiency.

  • Modular EVO designed for multi stack material applications and critical operations, offering quick-change head system with RFID identification for flexibility.

A fully electric drilling range capable of handling a wide range of applications, from small to large holes and materials ranging from CFRP to titanium. It offers robust and powerful motors and a comprehensive software suite for optimizing drilling cycles.

The complete M-EVO loop consists of four components, each fully customizable to suit your needs

to_complete

Control Box

  • Certified CE and UL.
  • Compatible with previous tool generation and the new M-EVO motor.
to_complete

Cable

  • Newly designed cable with a reduced diameter for enhanced flexibility
  • Available in various lengths and with different threaded connectors to suit specific requirements.
to_complete

Motor

to_complete

Head module

  • Extensive range of highly customizable equipment tailored to meet specific needs:
  • Includes Concentric Collet, Quarter Turn/Bayonet, J-Clamp, C-Clamp, Offset Heads, and more.

Control box V2.3 with cable

1

Power

  • 230 V | 13A | 3000W
  • 110 V | 13A | 1500W
2

Motor control

  • Rotation Motor : 48V | 70A max
  • Feed Motor : 48V | 5A max
  • Lub Motor : 48V | 5A max
3

Pneumatic control

  • Equipment Pressure : 0 to 6 Bar
  • Lubricant Air : 0 to 6 Bar
4

Lubricant control

  • Lubricant Flow : 0 to 35 ml/min
  • Lub Tank : 1,5L
5

Protocol communication

  • Open Protocol
  • MQTT
  • Modbus
6

Safety

  • E-STOP Cat.3 Pl.D
  • Safe Torque Off Cat 3 PL. D
7

Additional features

  • IO port | stack light
  • Vacuum Information Output
  • Ethernet x2 with seperated networks
  • Protected USB (memory & feature management)
8

Cable

  • Available in 4m, 5m, 7m
  • Customizable upon request

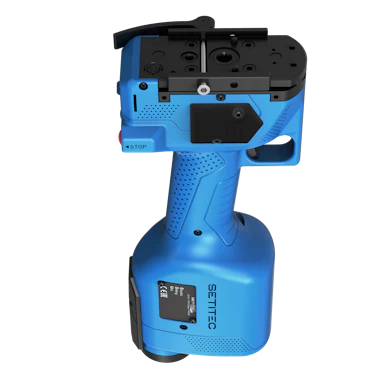

The new motor design with Quick Release interface

1

Faster setup time

  • Quick-release system allows easy head module changes using a robust and simple locking lever
  • Unlimited number of head modules can be used with each M-EVO motor
2

Integrated lubrication

  • Quick-release head interface with fully integrated lubrication eliminates manual connections.
  • Drilling can start immediately after head attachment.
  • Check valved included to ensure quick lubrication coupling.
2

Improved operator comfort & efficiency

  • Redesigned motor housing with a more comfortable, ergonomic gripper.
  • Easier manipulation for operators, reducing fatigue and improving productivity.
3

RFID technology & Sensors integration

  • RFID Antenna #1: For automatic head recognition. In parallel,sensor detects whether the head is properly clamped, enhancing safety and reliability.
  • RFID Antenna #2: For geolocation-based tool activation - positioning system (in option).
4

Consistent performance

  • Dual-motor system, speed and feed, maintained for reliable and optimized drilling.
  • New winch
  • improved cooling and improved air flow thanks to 2 integrated air exhaust.
5

Screen information display

  • Built-in bumper to rienforce screen protection

  • Screen information remains unchanged:

  • Cycle count

  • Head status

  • Preventive maintenance indicators

6

Visual feedback

  • Integrated lights provide real-time visual feedback to the operator.
7

Tool setup

with EVO config software for more precision :

  • Speed
  • Feed
  • Lubrication
  • Vacuum
  • Clamping force

Key differences

  • Motor configuration

    M-EVO motor : Dual motors (speed + feed)
    M-EVO motor Next Gen : Same – dual motors maintained

  • Ergonomic design

    M-EVO motor : Standard grip, functional
    M-EVO motor Next Gen : ✅ Improved design with enhanced handling and comfortable grip

  • Lubrication connection

    M-EVO motor : Manual lubrication pipe connection
    M-EVO motor Next Gen : ✅ Integrated into head - automatic upon connection

  • Quick-Release head interface

    M-EVO motor : ❌ Not available – manual head connection
    M-EVO motor Next Gen : ✅ Quick-release system with automatic connection

  • RFID – Head recognition

    M-EVO motor : Integrated RFID antenna for head detection
    M-EVO motor Next Gen : Same - no change

  • RFID – Geolocation/Tool activation (in option)

    M-EVO motor : ❌ Not available - external setup needed
    M-EVO motor Next Gen : ✅ Front-facing RFID for geolocation activation

  • Screen display

    M-EVO motor : Cycle count, head status, maintenance
    M-EVO motor Next Gen : Same – no change in displayed info

  • Bumper for screen protection

    M-EVO motor : ❌ Not available
    M-EVO motor Next Gen : ✅ Integrated

  • Visual feedback (LED lights)

    M-EVO motor : ❌ Not available
    M-EVO motor Next Gen : ✅ Built-in LEDs for operator status feedback

  • Sensor compatibility (e.g clamping) (in option)

    M-EVO motor : ❌ Not available - external setup needed
    M-EVO motor Next Gen : ✅ Integrated connector for real-time sensor input

  • Tool set up via EVO Software

    M-EVO motor : Speed, feed, lubrication, vacuum, clamping
    M-EVO motor Next Gen : Same - no change

  • Head modules

    M-EVO motor : Unlimited number of heads
    M-EVO motor Next Gen : Same-

Frequently Asked Questions

What are the differences between the Light EVO and the Modular EVO ?



  • The main differences between them are in their design and functionality.

  • The Light EVO is a compact, all-in-one solution with a single motor. It integrates essential functionalities into a single unit, making setup and operation simple.

  • The Modular EVO features a modular design that allows for customization and scalability. It features two motors, one for speed and one for feed, with the ability to switch between different modules as needed thanks to RFiD system.

How does the EVO range improve precision and quality?



  • It automatically adjusts drilling parameters for multi-stack materials, ensuring greater precision, enhanced quality, and shorter cycle times, ultimately streamlining production workflows.

  • The Light EVO and Modular EVO allow you to set rotational speed, feed rate, and lubrication according to the material being drilled.

Can the EVO range help reduce costs?



  • Yes!

  • By increasing accuracy, repeatability, and efficiency, EVO solutions minimize material waste, rework, and downtime.

  • Their durable components also reduce maintenance costs, offering a cost-effective solution for aerospace manufacturers.

How does the EVO range contribute to operator comfort?



  • The EVO Range enhances operator comfort with ergonomic grips, reduced vibration through semi-automation, and a lower-noise design compared to pneumatic alternatives.

How does the EVO range support process monitoring and efficiency?



  • With real-time data collection and intelligent process monitoring, EVO tools provide enhanced quality control, predictive maintenance insights, and operational efficiency.

  • These capabilities help manufacturers maintain high production standards.

Can the EVO range support sustainable manufacturing?



  • Yes!

  • EVO tools are engineered for efficient energy use, minimal material waste, and optimized processes, contributing to a more sustainable and environmentally friendly manufacturing approach.

What competitive advantages does the EVO range offer?



  • By combining precision, semi-automation, and adaptability, the EVO range helps aerospace manufacturers enhance efficiency, reduce costs, and maintain superior quality standards.

  • Companies adopting EVO solutions gain a technological edge in aircraft assembly 4.0.

Is a license required to manage drilling parameters of the EVO range ?



  • No.

  • A license is not needed to use the EVO Config software.

  • Updated versions can be downloaded for free.
